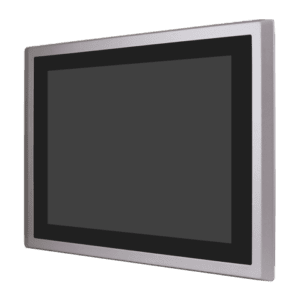

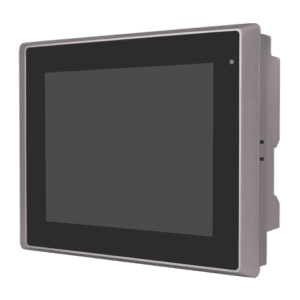

The Panel PCs of the SMART-HMI-6412 series form a perfect compromise in terms of performance, energy consumption and price.

The four-core processor from Intel, metered at 2.00 GHz – in combination with the already standard 8GB RAM (expandable to max. 32GB) – has enough computing power to master almost all tasks in the field of control and visualization without any problems and is nevertheless very economical in terms of power consumption and heat dissipation.

The robust aluminium housing not only impresses with its low construction depth, but also cools and reliably protects the high-quality industrial components of the touch computer.

The mass storage (SSD) is accessible via a service flap on the panel PCs of this product series and can be quickly replaced in the event of an error without having to dismantle the device.

You can choose between a resistive or a capacitive touchscreen to operate the touch PCs.
Both touch variants are flush-mounted, installed without dirt edge to the display, extremely precise and absolutely suitable for industrial use.

Prozessor

Intel Celeron N2930 Quad-Core (4 x 1.83 - 2.16 GHz) CPU

Arbeitsspeicher

4GB DDR3 RAM

Massenspeicher

7" - 8" 1 x Half-Size 1.8" SSD, 1 x SD-Slot, 10.1" - 21.5" 1 x 2.5" HDD or SSD, 1 x SD-Slot

Anschlüsse extern

1 x Power-IN, 1 x RS232, 1 x RS-232/422/485, 1 x USB 2.0, 1 x USB 3.0, 2 x GB-LAN, 1 x Audio, optional 3. + 4. COM / 3. + 4. USB (12" - 21.5")

Erweiterungsslots

1 x Mini-PCIe

Kühlung
Completely fanless
Spannungsversorgung

9 ~ 36V DC, optional 100 - 240V AC via external power supply, power consumption: 60W

Betriebstemperatur

0°C ~ 50°C, 10 - 90% no condensing at 40°C

Schutzart
Front side IP65, Housing IP20
Gehäuse

Die-cast aluminum housing, aluminum front

Befestigung

VESA mounting, Panel mounting (installation kit included)

Displayvarianten

7" 800 x 480 px, 350 cd/m²8" 800 x 600 px, 350 cd/m10.1" 1280 x 800 px, 350 cd/m²12" 800 x 600 px, 450 cd/m²12" XGA 1024 x 768 px, 500 cd/m²15" 1024 x 768 px, 450 cd/m²15.6" 1366 x 768 px, 300 cd/m²15.6" HD 1920 x 1080 px, 300 cd/m²17" 1280 x 1024 px, 350 cd/m²18.5" 1366 x 768 px, 300 cd/m²18.5" HD 1920 x 1080 px, 300 cd/m²19" 1280 x 1024 px, 350 cd/m²21.5" 1920 x 1080 px, 250 cd/m²

Touchscreen

SMART-HMI-2931: Resistive touchscreenSMART-HMI-2931-P: PCT glass-multi-touch, 7H surface hardness

Abmessungen (B x H x T)

7" 202 x 149 x 39 mm8" 231 x 176 x 50 mm10.1" 285 x 189 x 48.9 mm12" 319 x 245 x 51.7 mm15" 410 x 310 x 54.7 mm15.6" 412 x 277.5 x 58.9 mm17" 439 x 348 x 64.8 mm18.5" 499.6 x 314.6 x 59.9 mm19" 468 x 380 x 64.8 mm21.5" 557 x 362 x 64.8 mm

Unterstützte Betriebssysteme

Windows 7, Windows embedded Standard 7, Windows 10, Windows 10 IoT, Linux/Unix

Unterstützte Bussysteme

USB, RS232/RS422/RS485, EtherCAT, PROFIBUS*, SERCOS*, DeviceNET*, CANopen*, etc* (* optional)

Zertifizierungen
CE, UL
