Due to a production bottleneck at Intel, our HIPEC-PRO-6425 series will be equipped with either the well-known ATOM x6425E or the Celeron J6412 from Q2/2026, depending on availability!
The panel PCs of the HIPEC-PRO-VA-6425 series are equipped with a stainless steel housing that is completely protected to IP65 and are therefore particularly suitable for hygienically sensitive applications.
The display diagonals available are 10″, 12″, 15″ and 19″ in 4:3 format and 15.6″, 18.5″ and 21.5″ in 16:9 / 16:10 wide-screen format. All display sizes are available with either a resistive touchscreen or a capacitive glass multi-touch.
The hardware used is an Intel® Elkhart Lake x6425e / J6412 quad-core CPU with 8GB DDR4 RAM. The RAM can optionally be expanded up to 32GB. The HIPEC-PRO-VA-6425 offers the option to install Windows 10, Windows 10 IoT, and Windows 11. Power is supplied by an integrated 100–240 V AC power supply. Alternatively, the devices can also be operated with 12 – 24V DC. In addition to a wide range of standard interfaces (USB, COM, LAN), the HIPEC-PRO-VA-6425 panel PCs can also be equipped with Wi-Fi, Bluetooth, or additional bus systems or expansion cards.
During the development of the HIPEC-PRO-VA-6425 panel PCs, the focus was specifically on use in the food and beverage industry and in medical or chemical industrial sectors. The stainless steel housing, which is completely sealed to IP65, reliably protects the electronics and is resistant to most cleaning agents and disinfectants. Rounded edges and smooth surfaces enable easy cleaning. The touchscreen is flush-mounted in the front. This prevents the accumulation of dirt and bacteria at the transition from the housing to the display.
Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU
Stainless steel housing (V2A) / V4A optional
| Highlights |
|
|---|---|
| Prozessor | Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU |
| Arbeitsspeicher | 8GB DDR4 RAM, expandable to max. 32GB |
| Massenspeicher | 1x M.2 NVMe SSD PCIe4.0 x4 from 128GB |
| Anschlüsse intern | 2 x LAN, 2 x USB (3.0), 3 x USB (2.0), 2 x HDMI, optional 2 x COM (DB-9) |

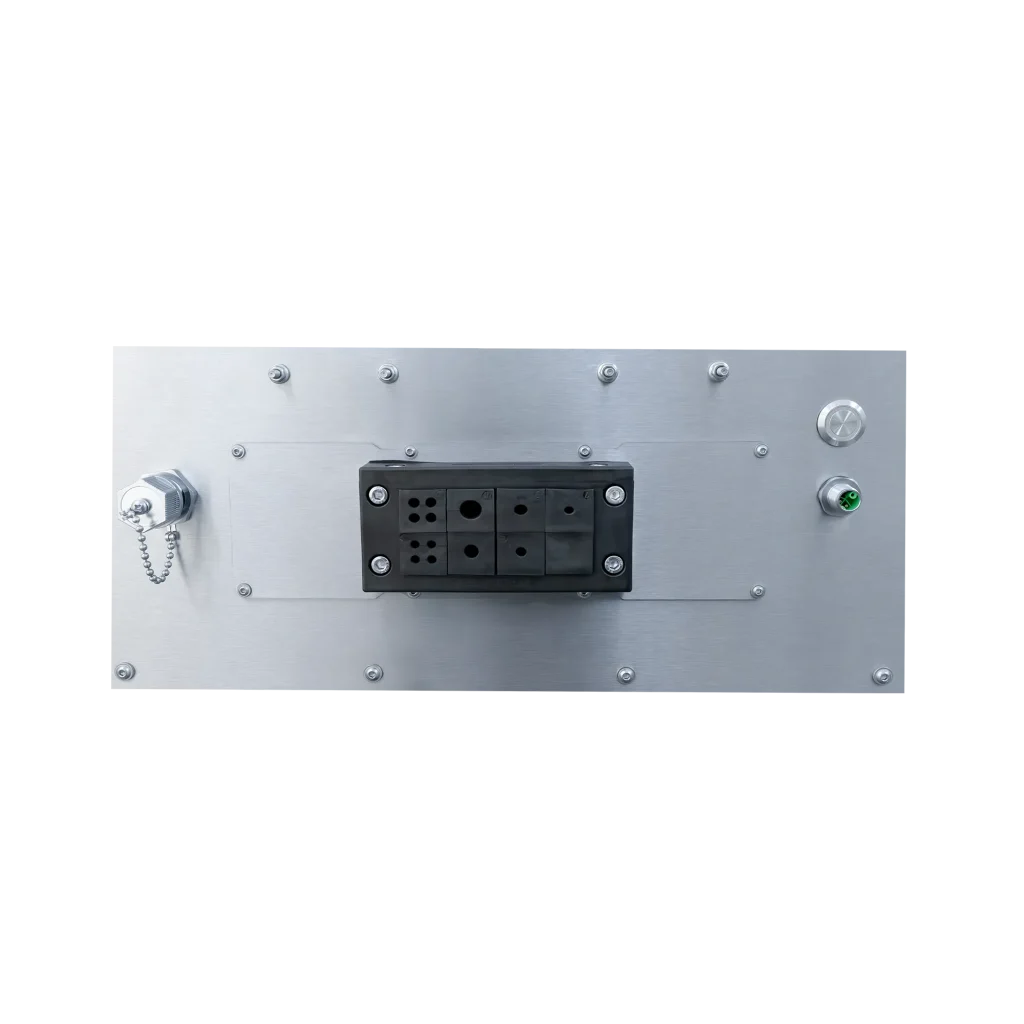

| Anschlüsse extern | 1 x voltage input, 1 x USB 2.0 industrial connector (metal) with cover cap, variable cable entry (Icotek KEL-ER) for up to 8 supply lines with IP65 protection, optional instead of variable cable entry (for an extra charge): industrial connectors (metal IP69K) with cover cap possible |
| Erweiterungsslots | 1 x M.2 E-Key type-2230 PCIe x1/USB 2.0 interface, SATA III 6GB interface |
| Kühlung | Completely fanless |
| Spannungsversorgung | 12 ~ 24V DC, optional 100 - 240V AC power supply integrated, power consumption: 100W |
| Betriebstemperatur | 0°C ~ 50°C, 10 - 90% at 40°C non-condensing |
| Schutzart | All-round IP65 |
| Gehäuse | Stainless steel housing (V2A) / V4A optional |
| Befestigung | VESA mounting |
| Displayvarianten | 10" 1280 x 800 px, 350 cd/m² |
| Touchscreen | HIPEC-PRO-VA-6425: Resistive Touchscreen |
| Abmessungen (B x H x T) | 10" 288 x 207 x 55 mm |
| Unterstützte Betriebssysteme | Windows 10*, Windows 10 IoT*, Windows 11" |
| Unterstützte Bussysteme | USB, RS232/RS422/RS485, EtherCAT, PROFIBUS*, SERCOS*, DeviceNET*, CANopen*, etc* (* optional) |
| Optionale Erweiterungen | W-LAN, Bluetooth, extended temperature range, high-brightness |
| Zertifizierungen | CE |
| RFID Integriert | Ja |
| RFID | No integrated RFID reader |
