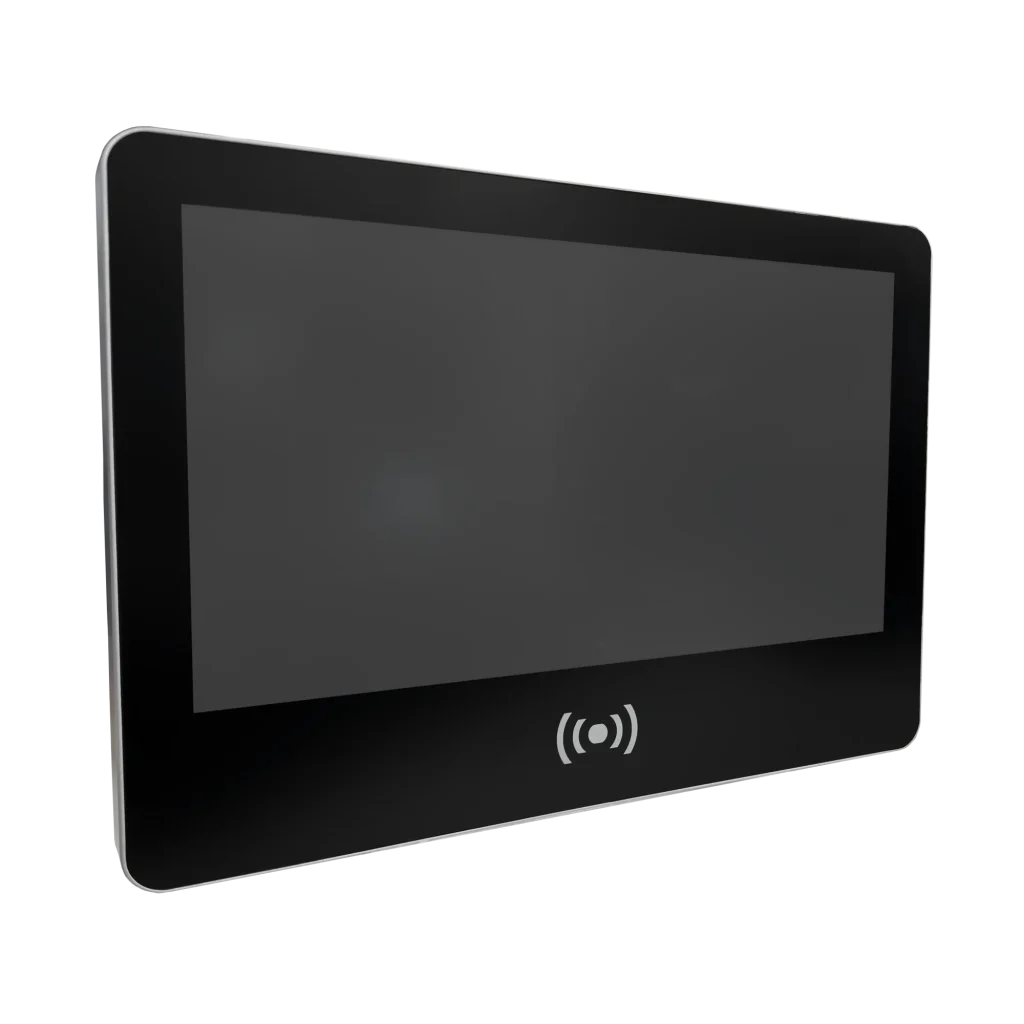

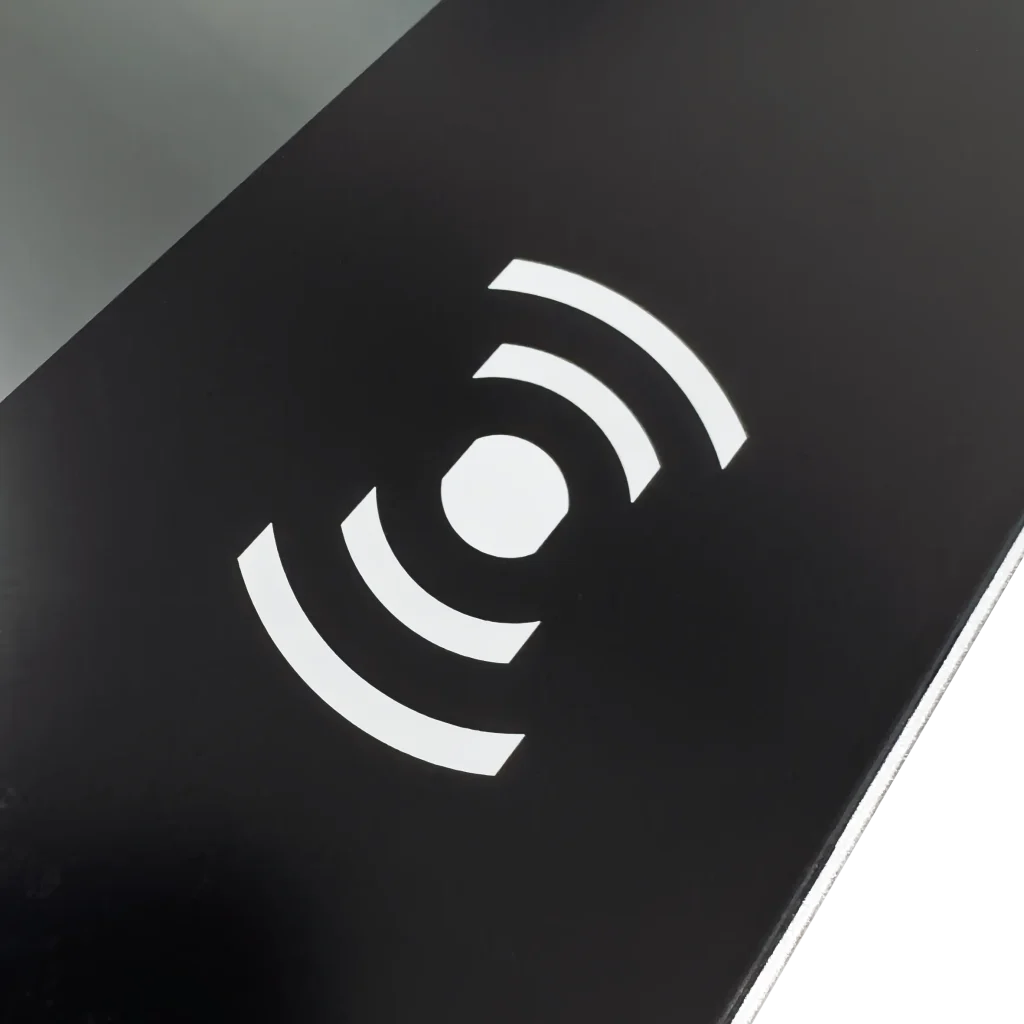

The panel PCs of the HIPEC-PRO-AL-2250 series are equipped with a robust aluminum housing with integrated RFID reader and form a very good compromise between performance, energy consumption and price.

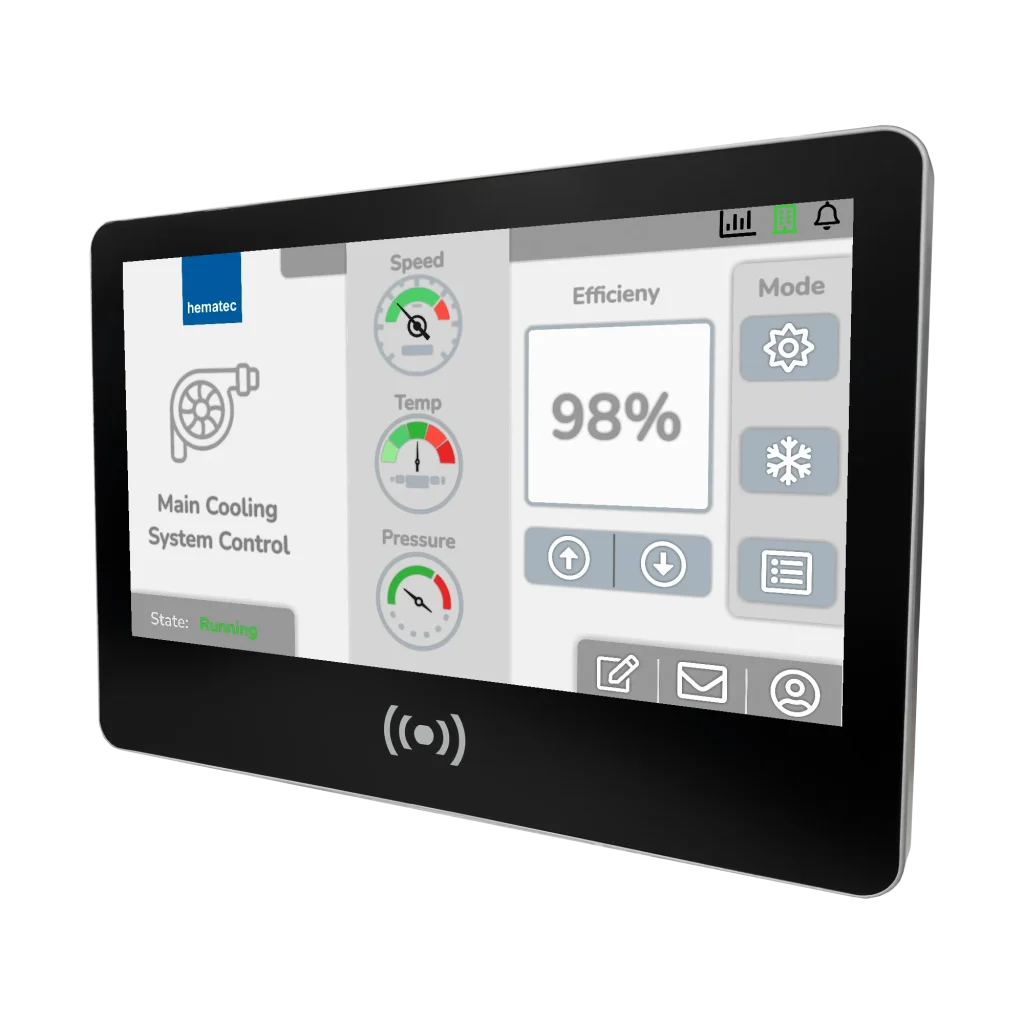

The display diagonals available are 15.6″ and 21.5″. All display sizes are equipped with a capacitive glass multi-touch. The touch screen is flush-mounted in the front. This prevents the accumulation of dirt and bacteria at the transition from the housing to the display.
The robust aluminum housing is impressive not only because of its low installation depth, but also reliably cools and protects the high-quality industrial components of the touch computer.
The hardware used is a high-performance 11th Gen Intel Core i5 CPU with 2 x 2.40 – 4.20 GHz and 8GB DDR4 RAM. The RAM can optionally be expanded to 64GB. The HIPEC-PRO-AL-2250 offers the possibility of installing Windows 10 or Windows 10 IoT and Windows 11. The power supply is provided by an integrated 100 – 240V AC power supply. Alternatively, the devices can also be operated with 12 – 24V DC. In addition to various standard interfaces (USB, COM, LAN), the HIPEC-PRO-AL-2250 panel PCs can also be equipped with W-LAN, Bluetooth or other bus systems or expansion cards.
Intel 11th Gen. Core i5-1135G7 (2 x 2.40 - 4.20 GHz) CPU
Aluminum housing
| Highlights |
|
|---|---|
| Prozessor | Intel 11th Gen. Core i5-1135G7 (2 x 2.40 - 4.20 GHz) CPU |
| Arbeitsspeicher | 8GB DDR4 RAM, expandable to max. 64GB |
| Massenspeicher | 1 x M.2 NVMe SSD PCIe4.0 x4 |

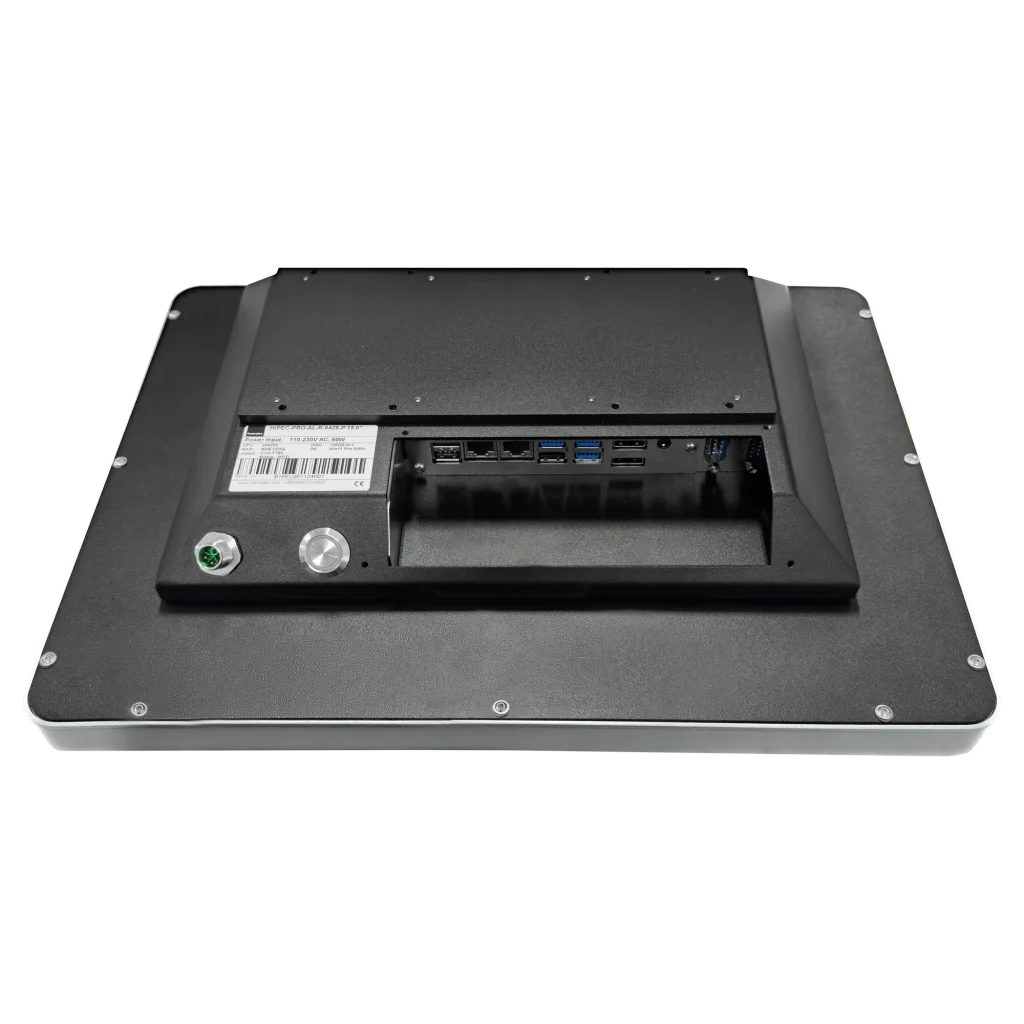

| Anschlüsse extern | 1 x voltage input, 2 x COM, 1 x GB-LAN, 1 x 2.5GB-LAN, |
| Erweiterungsslots | 1 x M.2 E-Key type-2230 PCIe x1/USB 2.0 interface, SATA III 6GB Interface |
| Kühlung | Completely fanless |
| Spannungsversorgung | 12 ~ 24V DC, optional 100 - 240V AC power supply integrated, power consumption: 120W |
| Betriebstemperatur | 0°C ~ 50°C, 10 - 90% at 40°C non-condensing |
| Schutzart | IP65 front, IP20 housing |
| Gehäuse | Aluminum housing |

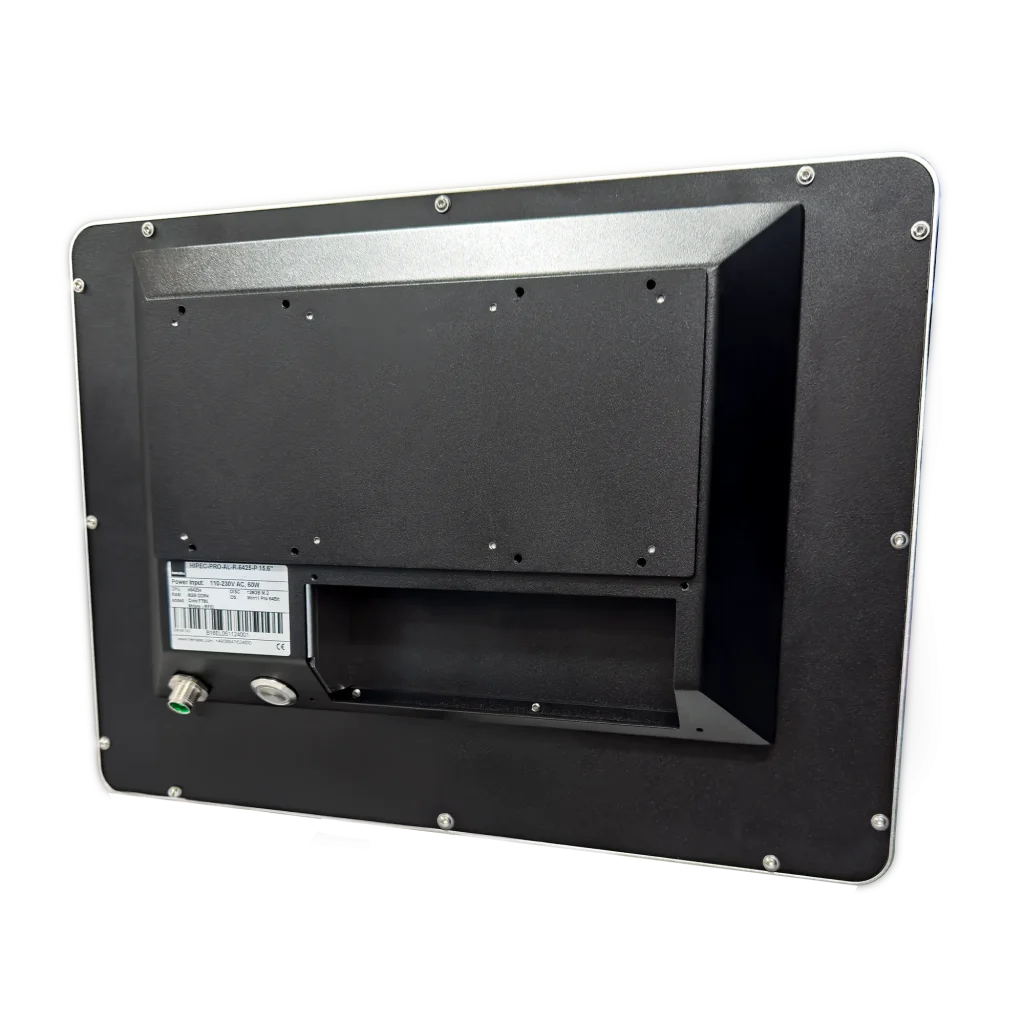

| Befestigung | VESA mounting |
| Displayvarianten | 15.6" HD 1920 x 1080 px, 220 cd/m² |
| Touchscreen | PCT glass multi-touch, 7H surface hardness |
| Abmessungen (B x H x T) | 15.6" 399 x 290 x 70 mm |
| Unterstützte Betriebssysteme | Windows 10, Windows 10 IoT, Windows 11, Windows 11 IoT |
| Unterstützte Bussysteme | USB, RS232/RS422/RS485, EtherCAT, |
| Optionale Erweiterungen | W-LAN, Bluetooth, extended temperature range, high-brightness |
| Zertifizierungen | CE |
| RFID Integriert | Ja |
| RFID | LF (EM4102, Hitag 1, Hitag 2, Hitag S, EM4150, |
