Due to a production bottleneck at Intel, our HIPEC-PRO-6425 series will be equipped with either the well-known ATOM x6425E or the Celeron J6412 from Q2/2026, depending on availability!
The panel PCs of the HIPEC-PRO-AL-6425 series are equipped with a robust aluminum housing and represent a very good compromise between performance, energy consumption and price.

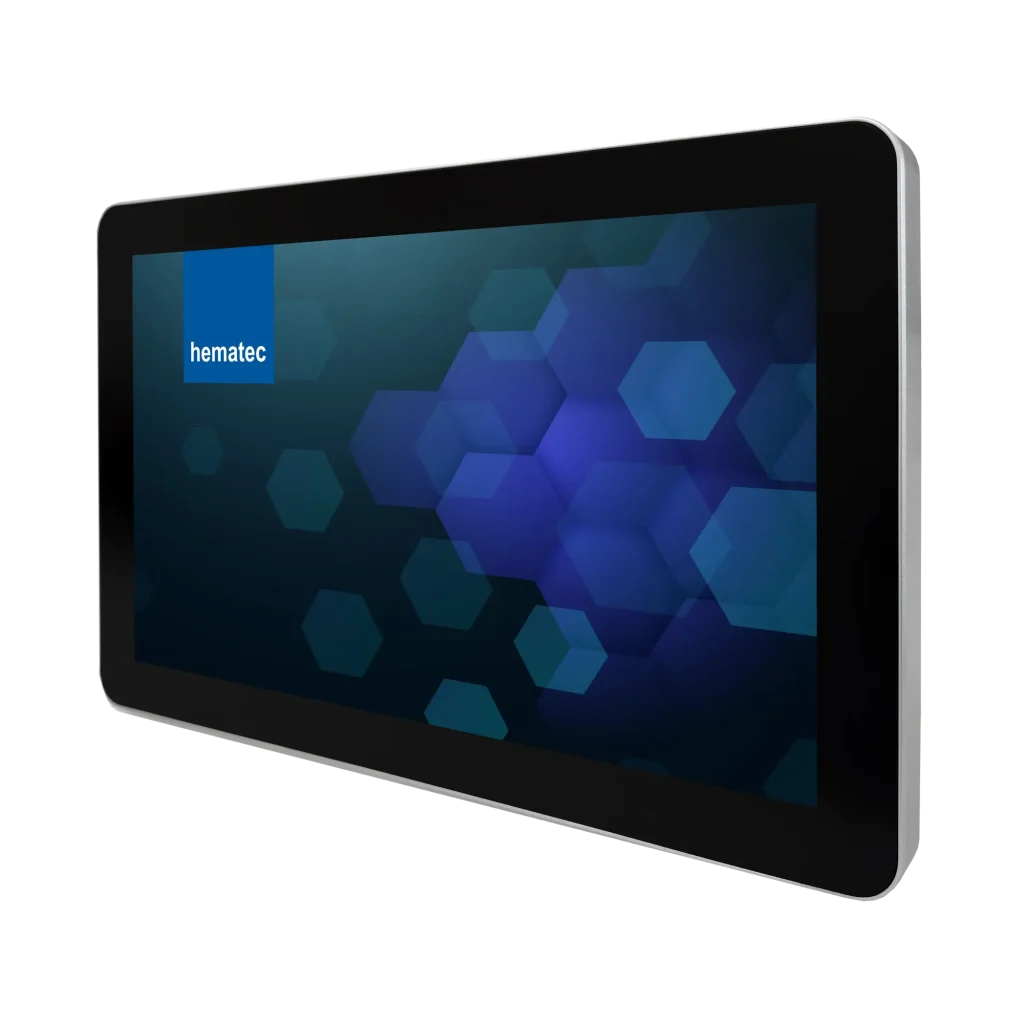

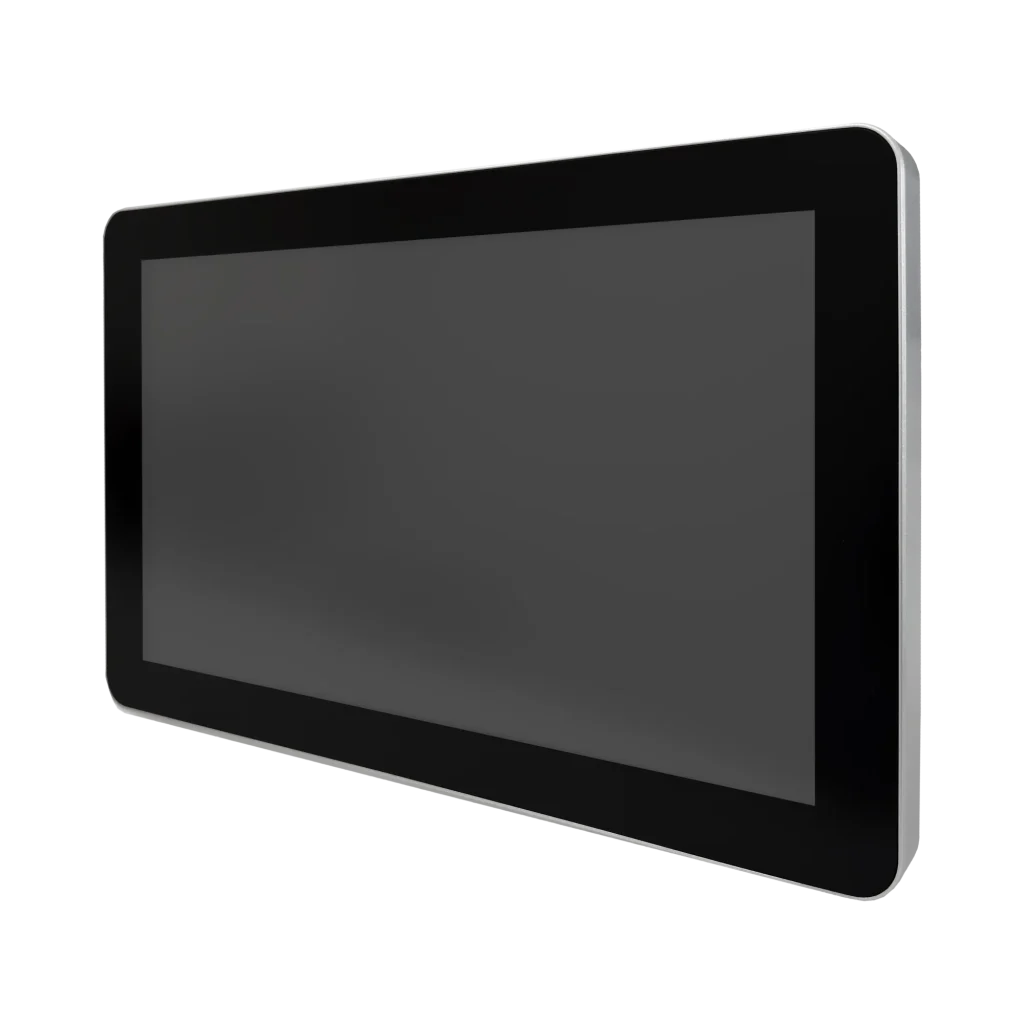

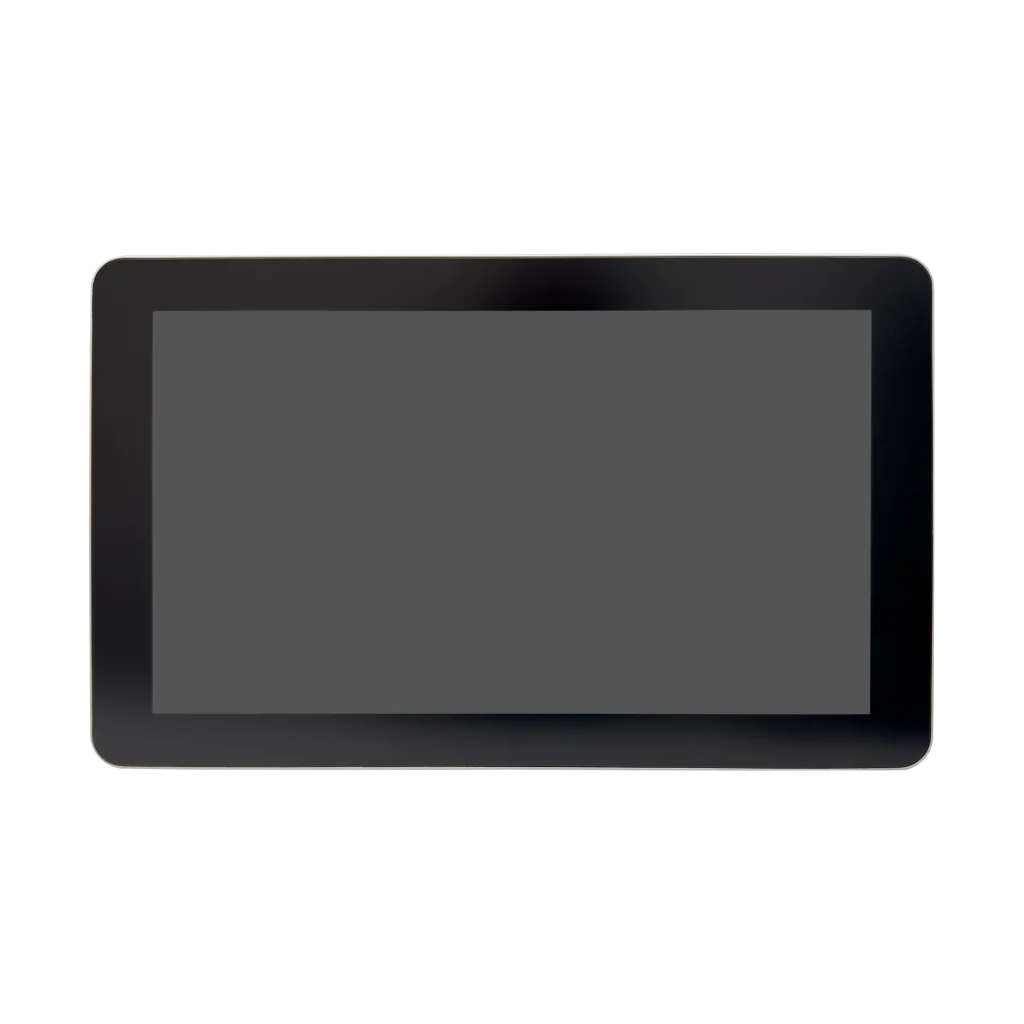

The display diagonals available are 10″, 12″, 15″, 17″ and 19″ in 4:3 format and 15.6″, 18.5″ and 21.5″ in 16:9 / 16:10 wide-screen format. All display sizes are equipped with a capacitive glass multi-touch. The touchscreen is flush-mounted in the front. This prevents the accumulation of dirt and bacteria at the transition from the housing to the display.

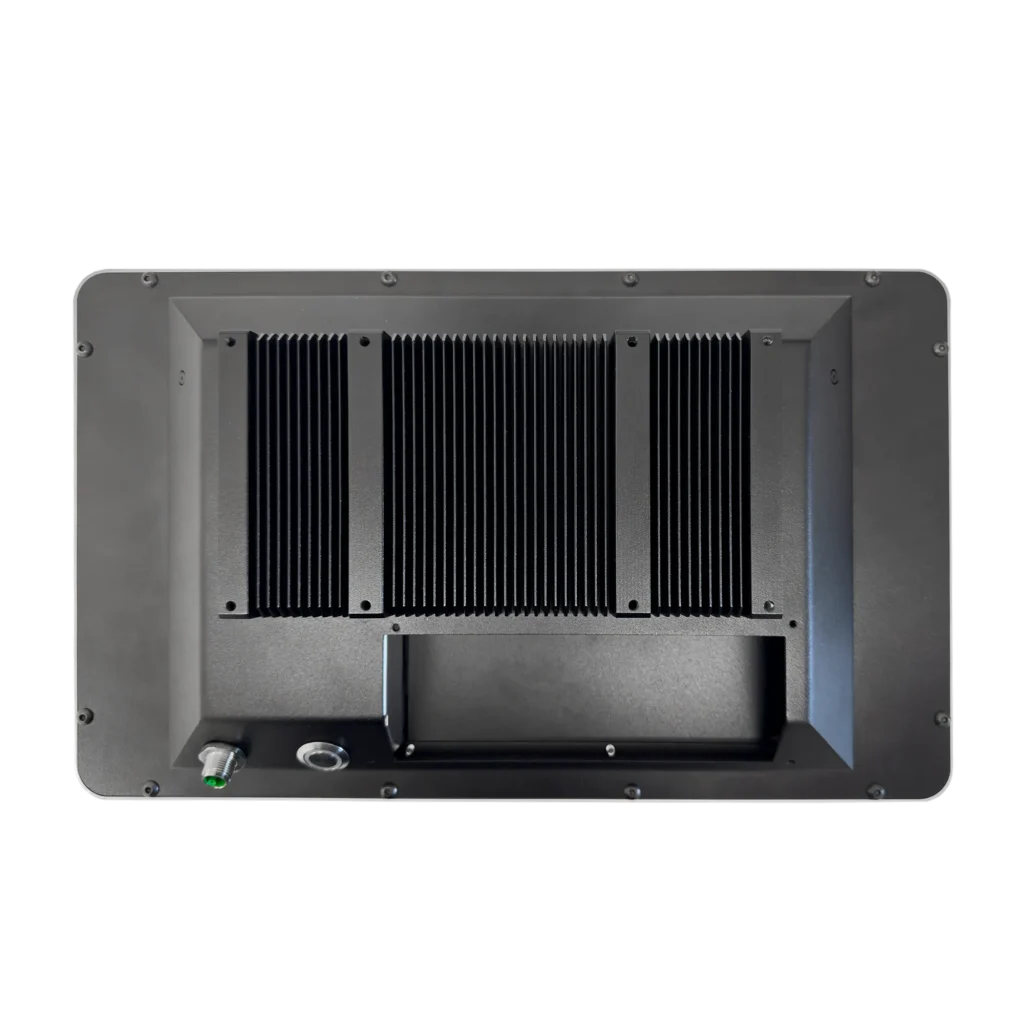

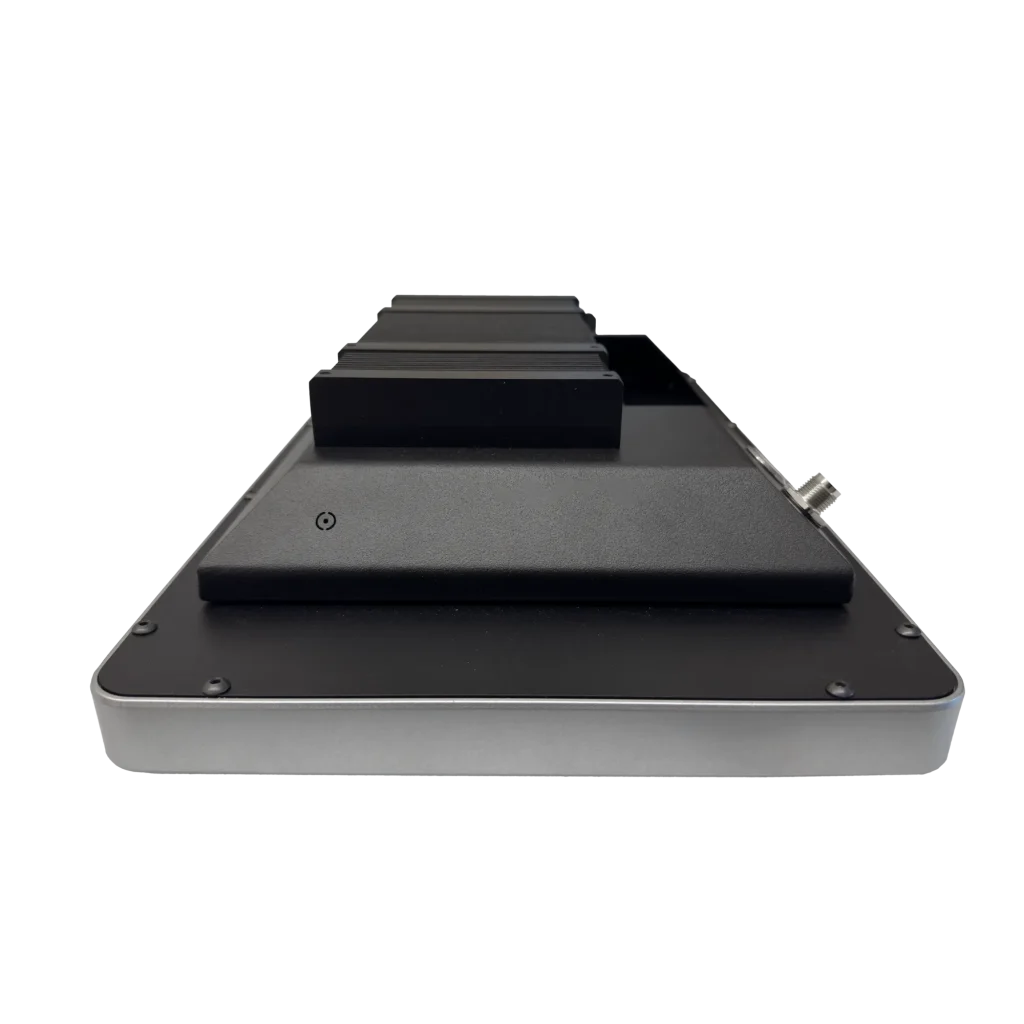

The robust aluminum housing is impressive not only because of its low installation depth, but also reliably cools and protects the high-quality industrial components of the touch computer.

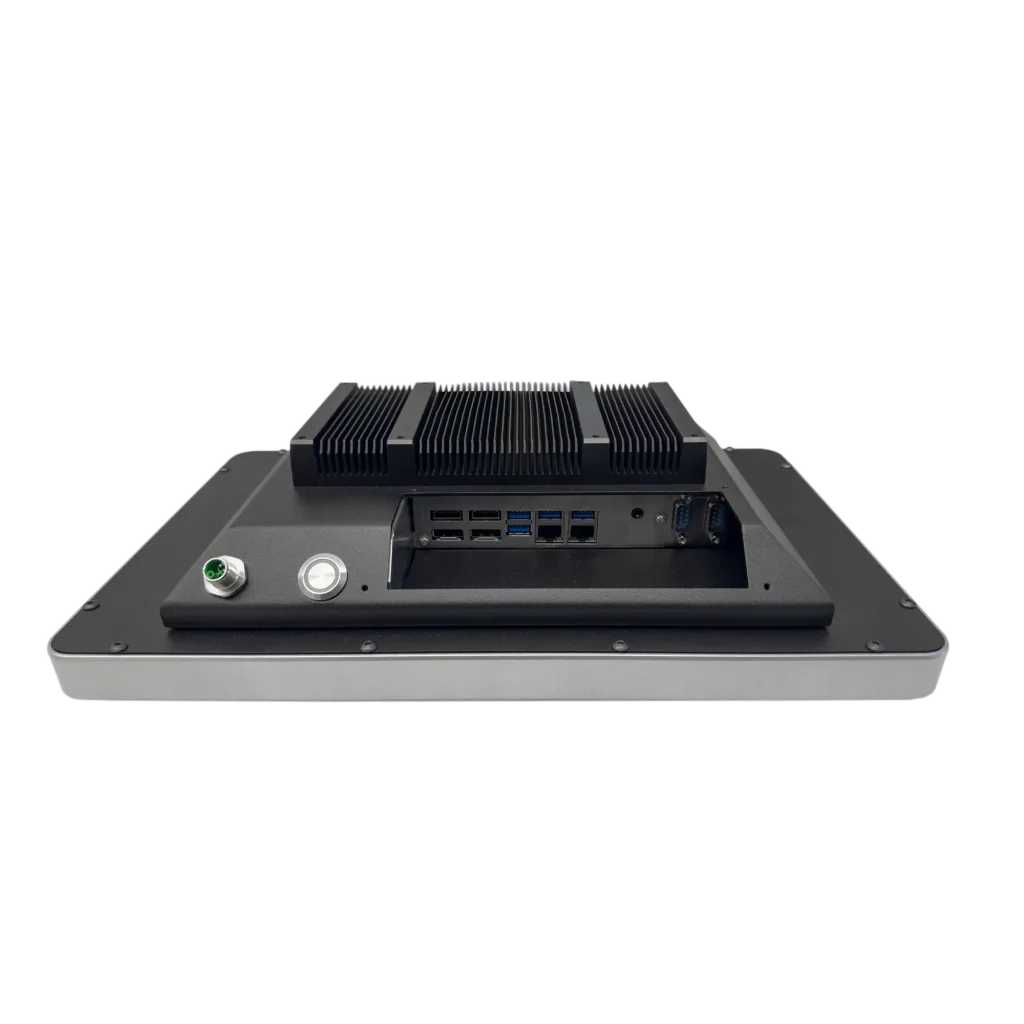

The hardware used is an Intel® Elkhart Lake x6425e / J6412 quad-core CPU with 8GB DDR4 RAM. The RAM can optionally be expanded up to 32GB. The HIPEC-PRO-AL-6425 offers the possibility of installing Windows 10, Windows 10 IoT, or Windows 11. The power supply is provided by an integrated 100 – 240V AC power supply. Alternatively, the devices can also be operated with 12 – 24V DC. In addition to various standard interfaces (USB, COM, LAN), the HIPEC-PRO-AL-6425 panel PCs can also be equipped with WLAN, Bluetooth, or other bus systems or expansion cards.
Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU
Aluminum housing
| Highlights |
|
|---|---|
| Prozessor | Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU |
| Arbeitsspeicher | 8GB DDR4 RAM, expandable to max. 32GB |
| Massenspeicher | 1 x M.2 NVMe SSD from 128GB |
| Anschlüsse extern | 1 x voltage input, 3 x USB 2.0, 3 x USB 3.1, 2 x RJ-45-LAN, |
| Erweiterungsslots | 1 x M.2 E-Key type-2230 PCIe x1/USB 2.0 interface, SATA III 6GB Interface |
| Kühlung | Completely fanless |
| Spannungsversorgung | 12 ~ 24V DC, optional 100 - 240V AC power supply integrated, power consumption: 100W |
| Betriebstemperatur | 0°C ~ 50°C, 10 - 90% at 40°C non-condensing |
| Schutzart | IP65 front, IP20 housing |
| Gehäuse | Aluminum housing |
| Befestigung | VESA mounting |
| Displayvarianten | 10.1" 1280 x 800 px, 350 cd/m² |
| Touchscreen | PCT glass multi-touch, 7H surface hardness |
| Abmessungen (B x H x T) | 10.1" 266 x 184 x 55 mm |
| Unterstützte Betriebssysteme | Windows 10*, Windows 10 IoT*, Windows 11* |
| Unterstützte Bussysteme | USB, RS232/RS422/RS485, EtherCAT, PROFIBUS*, SERCOS*, DeviceNET*, CANopen*, etc* (* optional) |
| Optionale Erweiterungen | W-LAN, Bluetooth, extended temperature range, high-brightness |
| Zertifizierungen | CE |
| RFID Integriert | Ja |
| RFID | No RFID reader installed |
