Product Highlights

Slim, elegant housing with aluminum front for wall or VESA mounting
Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU
Integrated RFID reader
Optional FLEX-NUMPAD (keypad with freely programmable 2.4″ touch display)
Optional W-LAN, Bluetooth, extended temperature range, high-brightness
Customized colors, interfaces, and adaptations are possible

SMART-BDE-6425 Series

Description

Due to a production bottleneck at Intel, our HIPEC-PRO-6425 series will be equipped with either the well-known ATOM x6425E or the Celeron J6412 from Q2/2026, depending on availability!

The SMART BDE 6425 from is a robust and flexible data acquisition terminal (BDE). It is suitable for industrial environments and offers a variety of interfaces for integration into existing systems. Among other things, the device supports the acquisition of working hours, machine states and production data. It also has a user-friendly touch display and can be combined with barcode or RFID readers.

Price on request

Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU

Completely fanless

Steel sheet housing (black), aluminum front and rear panel (RAL 9006), (Individual coloring possible)

IP20

Technical details

Highlights	Slim, elegant housing with aluminum front for wall or VESA mounting Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU Integrated RFID reader Optional FLEX-NUMPAD (keypad with freely programmable 2.4″ touch display) Optional W-LAN, Bluetooth, extended temperature range, high-brightness Customized colors, interfaces, and adaptations are possible
Prozessor	Intel® Elkhart Lake x6425e / J6412 Quad-Core CPU
Arbeitsspeicher	8GB DDR4 RAM, expandable to max. 32GB
Massenspeicher	1 x M.2 NVMe SSD PCIe4.0 x4 from 128GB

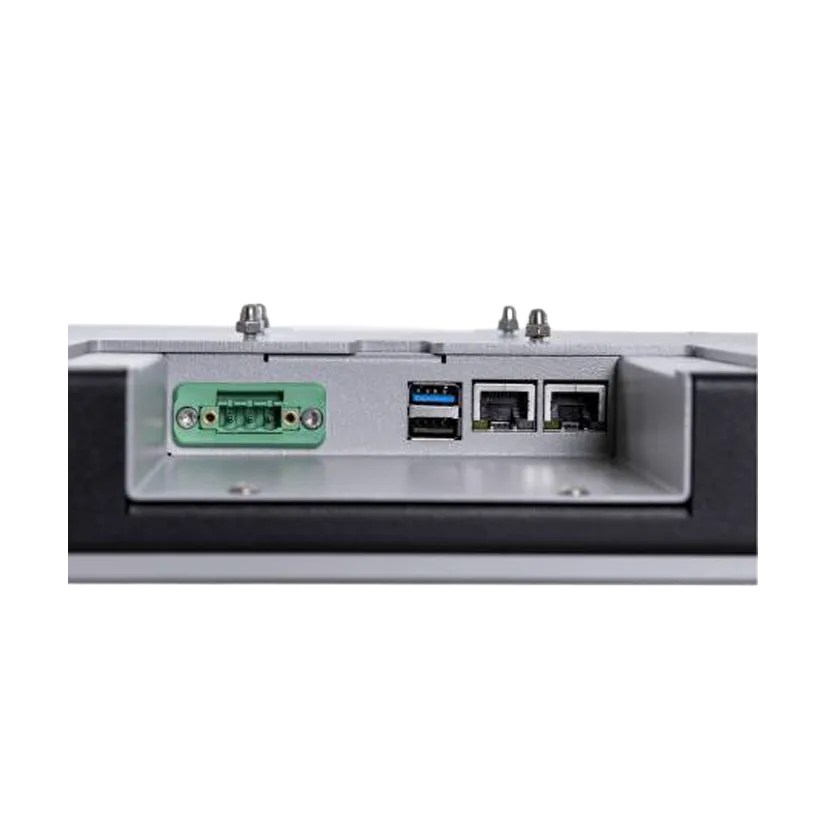

Anschlüsse extern	1 x voltage input, 2 x GB-LAN, 2 x USB 2.0
Erweiterungsslots	1 x M.2 E-Key type-2230 PCIe x1/USB 2.0 interface, SATA III 6GB interface
Kühlung	Completely fanless
Spannungsversorgung	100 - 240V AC power supply integrated, power consumption: 100W
Betriebstemperatur	0°C ~ 50°C, 10 - 90% at 40°C non-condensing
Schutzart	IP20
Gehäuse	Steel sheet housing (black), aluminum front and rear panel (RAL 9006), (Individual coloring possible)
Befestigung	VESA mounting
Displayvarianten	10.1" 1280 x 800 px, 350 cd/m²
Touchscreen	SMART-BDE-6425: Resistive touchscreen SMART-BDE-6425-P: PCT glass multi-touch, 7H surface hardness
Abmessungen (B x H x T)	10.1" 288 x 272 x 56.6 mm
Unterstützte Betriebssysteme	Windows 10, Windows 10 IoT, Windows 11* *no support for 32-bit operating systems
Unterstützte Bussysteme	USB, RS232/RS422/RS485, EtherCAT, PROFIBUS, SERCOS, DeviceNET, CANopen, etc* (* optional)
Weitere Ausstattung	Optionally, the BDE system can also be equipped with a combination of programmable intelligent 2.4" color display and numeric keypad, as shown.
Optionale Erweiterungen	WLAN, Bluetooth, extended temperature range, high brightness, FLEX-NUMPAD, FLEX-TOUCH (only for 10.1")
Zertifizierungen	CE
RFID Integriert	Ja
RFID	LF (EM4102, Hitag 1, Hitag 2, Hitag S, Em4150, Temic T5567, Q5), Multi-ISO (ISO14443A, ISO14443B, ISO15693), Mifare (1K, 4K, Desfire, Ultralight), Legic (Prime, Advant)
