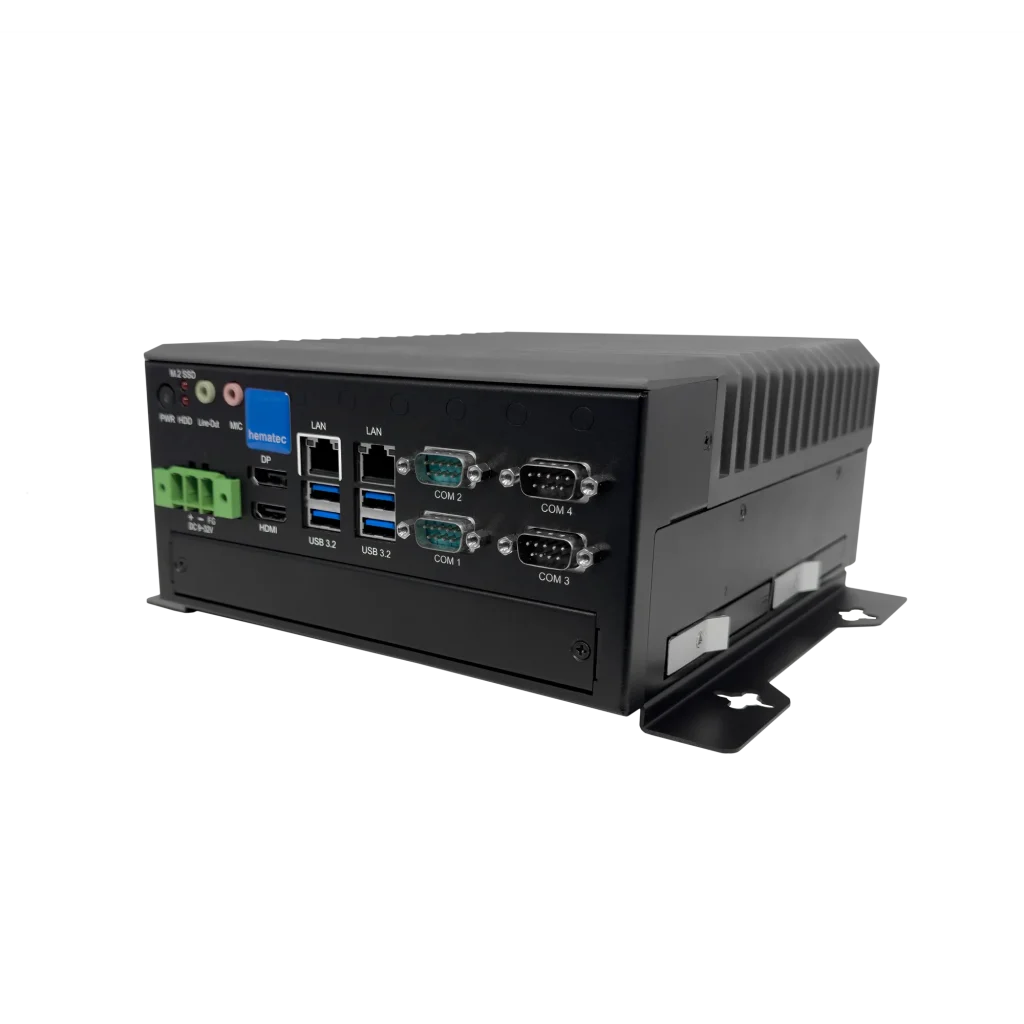

The EMPEC-6750 series is a powerful and versatile range of industrial PCs specifically designed for demanding industrial applications. Based on the architecture of the EMPEC-6750 series, it offers additional expansion possibilities through PCIe slots (1x PCIe16 & 1x PCIe4) and optional active cooling for maximum flexibility.
Inside is a 14th generation Intel Core i5-14400T processor, which ensures high computing power and energy efficiency. This is supported by at least 8 GB DDR5 RAM, with the option to expand up to 2x 32 GB DDR5 RAM. The EMPEC-6752 series has a fast M.2 SSD and two additional 2.5″ SATA 3 HD/SSD slots, which also enable a RAID configuration.
The compact and robust metal housing with all-round IP20 protection ensures high resistance in industrial environments. Despite their high performance, the systems remain silent and maintenance-free thanks to the completely fanless design – unless the optional active cooling for the PCIe expansion is used.
The industrial PCs in the EMPEC-6750 series are fully compatible with Windows 11 and therefore offer a future-proof platform for modern industrial applications. The expansion options with PCIe slots make this series particularly suitable for applications that require additional cards for functional expansion.
Thanks to its sophisticated design and high-quality components, the EMPEC-6750 series is a reliable, powerful and expandable solution for industrial control, automation and data-intensive processes.
14th Gen Intel Core i5-14400T (10 Cores, 20 M Cache, max. 4.5 GHz)

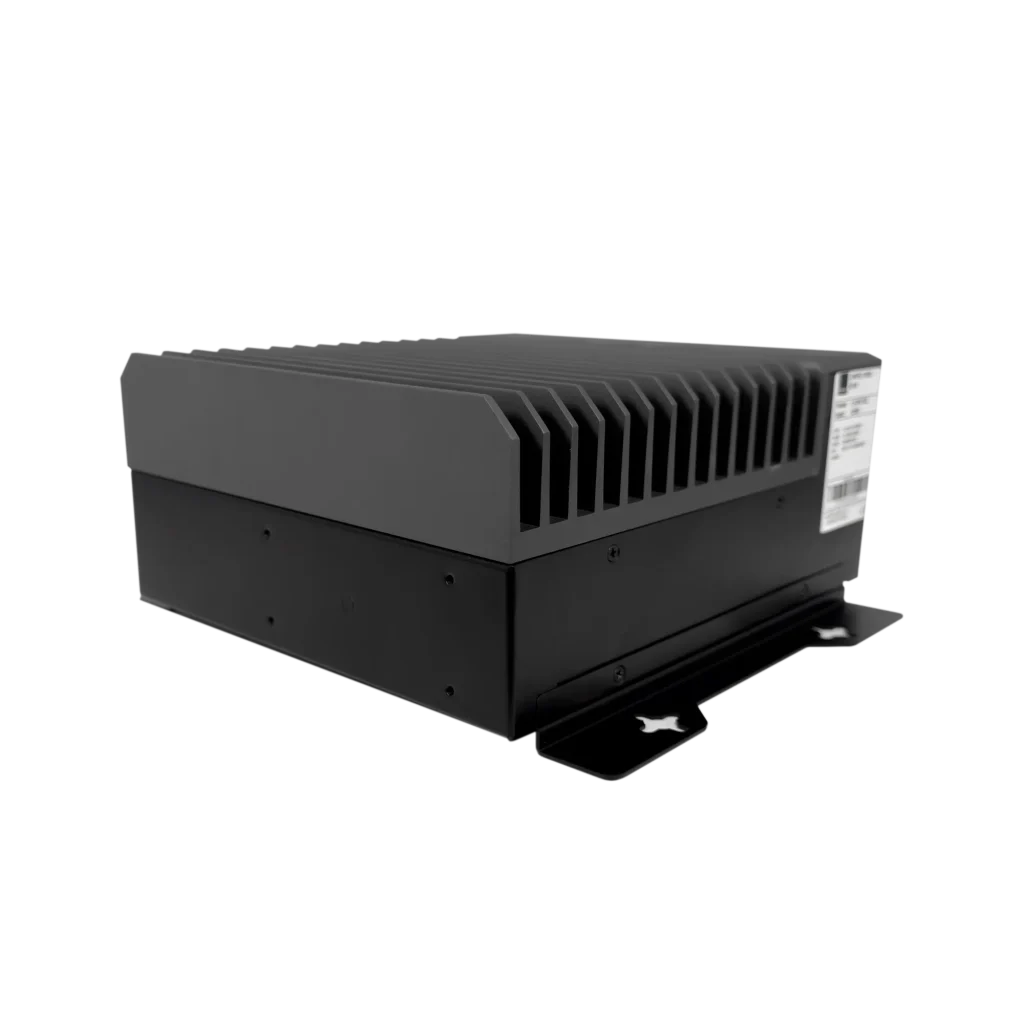

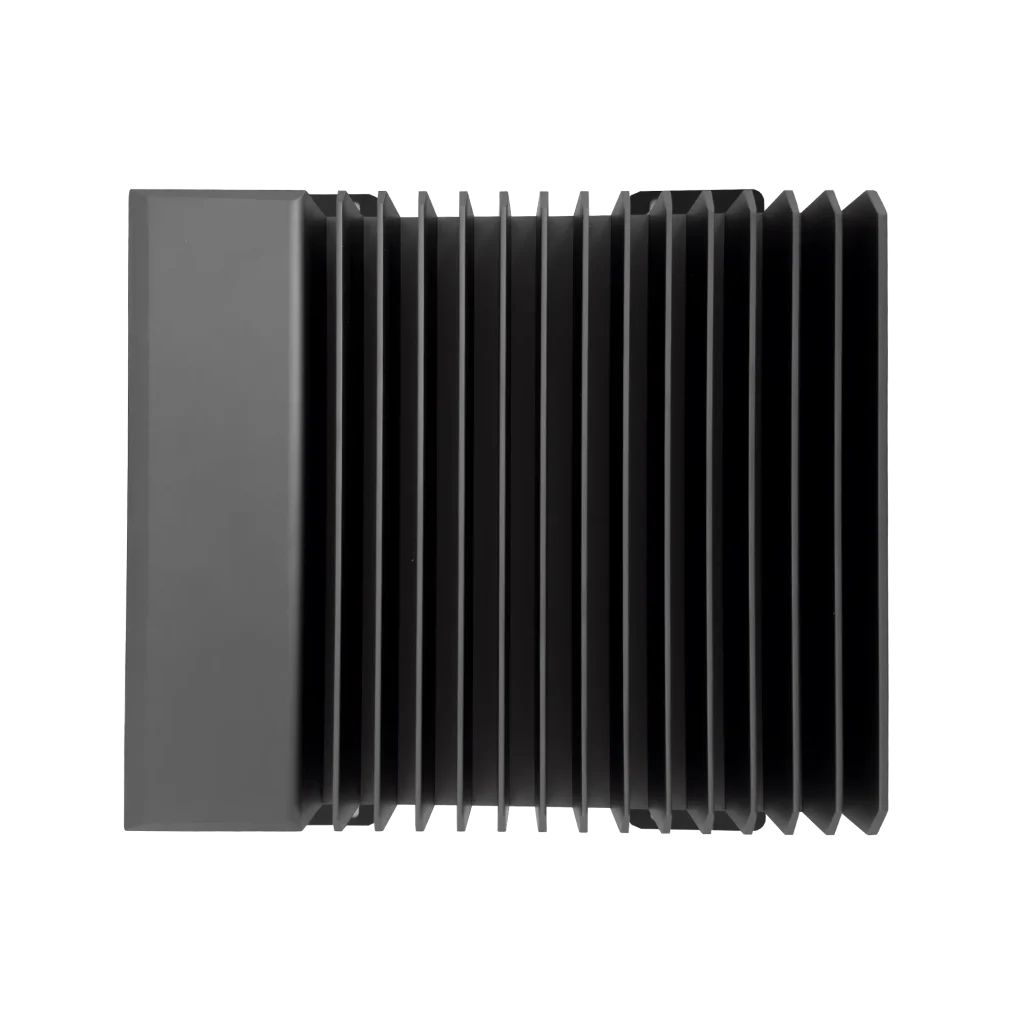

Painted sheet steel housing, aluminum heat sink
| Highlights |
|
|---|---|
| Prozessor | 14th Gen Intel Core i5-14400T (10 Cores, 20 M Cache, max. 4.5 GHz) |
| Arbeitsspeicher | From 8GB DDR5 RAM, up to 2x 32GB DDR5 RAM |

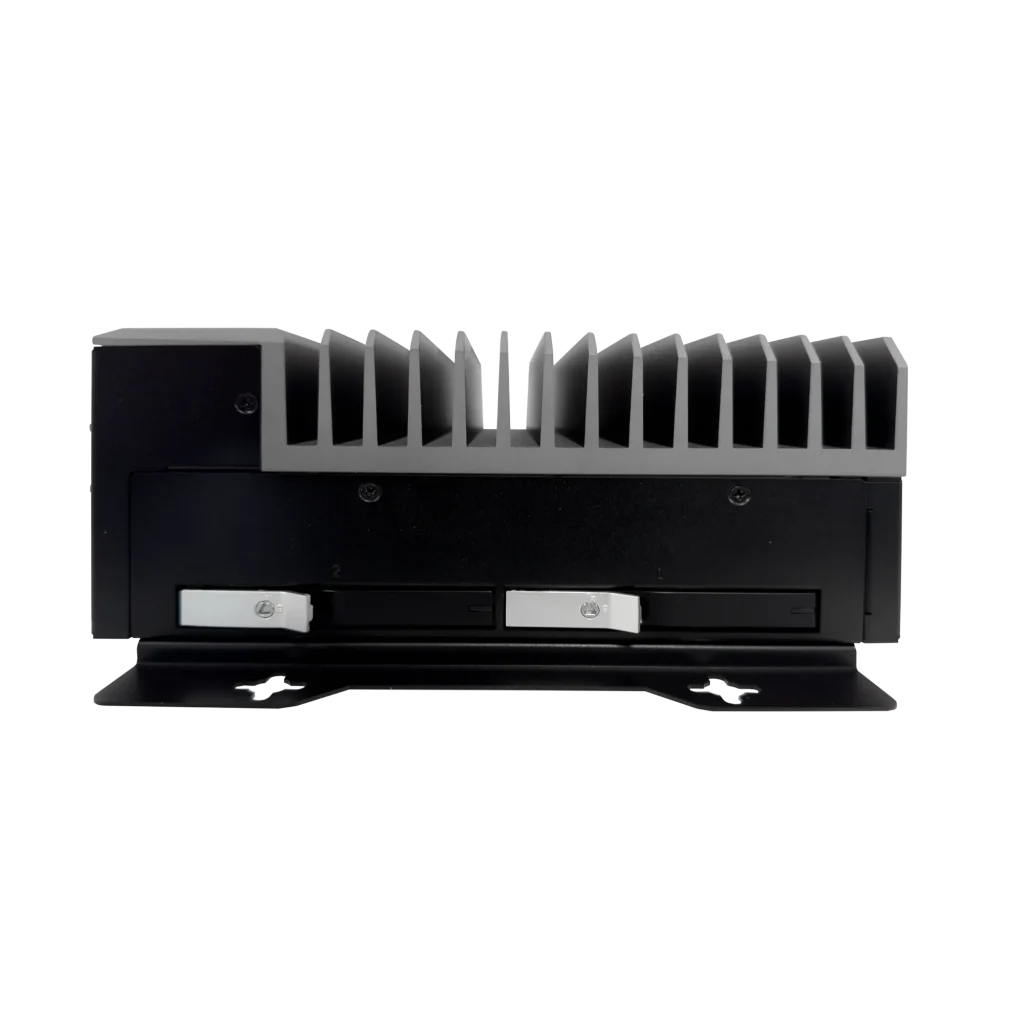

| Massenspeicher | 1x M.2 M-Key, 2280 & 2 x 2.5" S-ATA 3 HD/SSD slot |

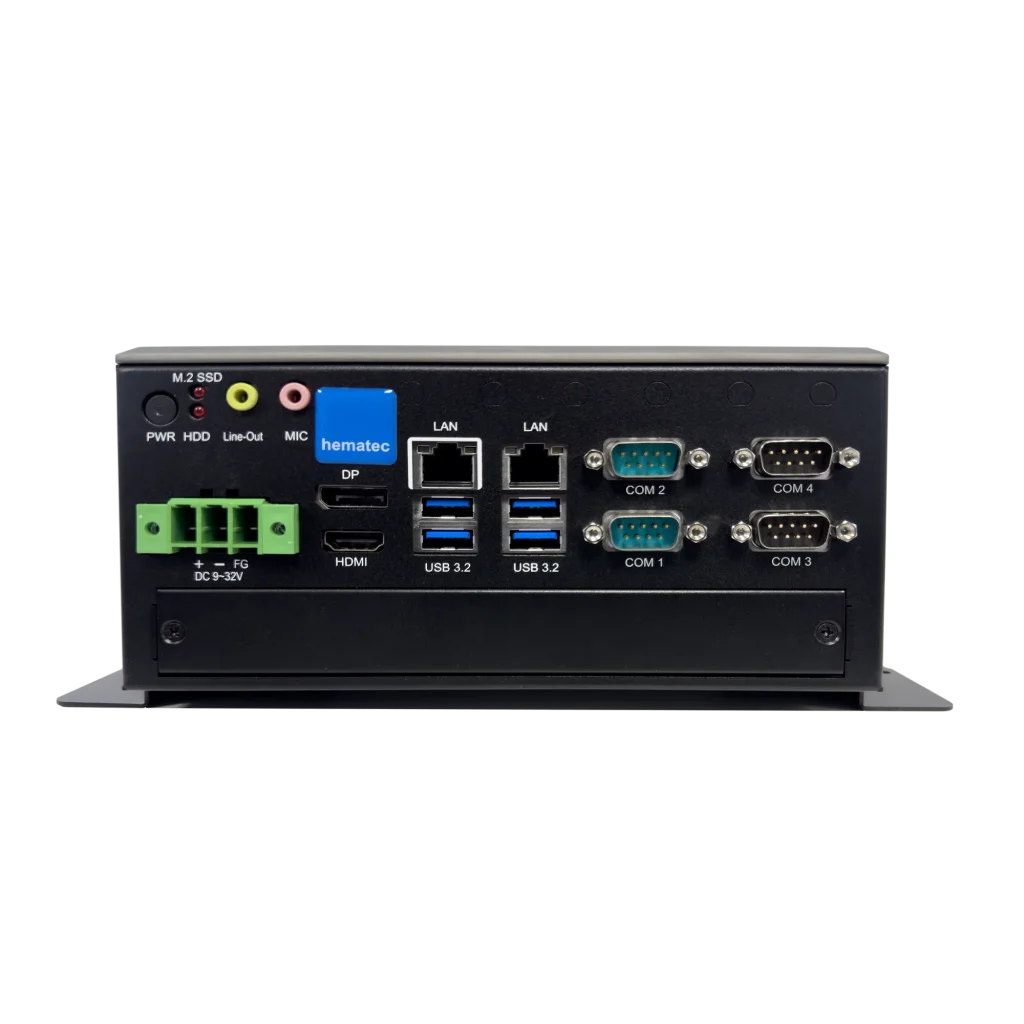

| Anschlüsse extern | 2 x 2.5GB-LAN (Intel i226LM), 4 x USB 3.2, |
| Erweiterungsslots | 1 x M.2 2230 E-Key (for Wi-Fi/Bluetooth optional) |
| Kühlung | Completely fanless |
| Spannungsversorgung | 9 ~36V DC, 100 - 220V AC with external power supply |
| Betriebstemperatur | -20~60°C ambient with airflow |
| Schutzart | IP20 all around |
| Gehäuse | Painted sheet steel housing, aluminum heat sink |

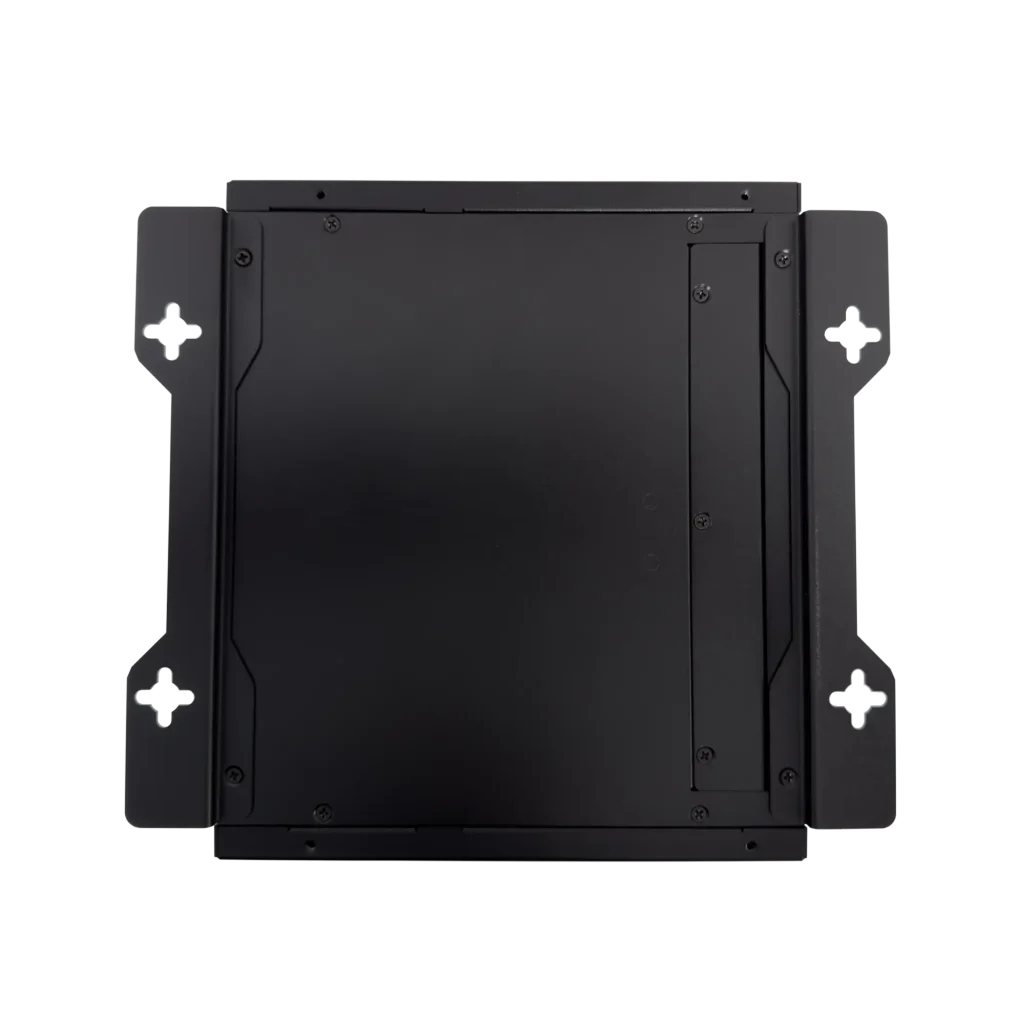

| Befestigung | Vibration-decoupled wall mounting |
| Abmessungen (B x H x T) | 217 x 95 x 222 mm |
| Unterstützte Betriebssysteme | Windows 10, Windows 10 IoT, Windows 11, Windows 11 IoT |
| Unterstützte Bussysteme | USB, RS232/RS422/RS485, EtherCAT, |
| Weitere Ausstattung | 1x PCIe x16 slot, 1x PCIe x4 slot, Optional fan to support the expansion cards |

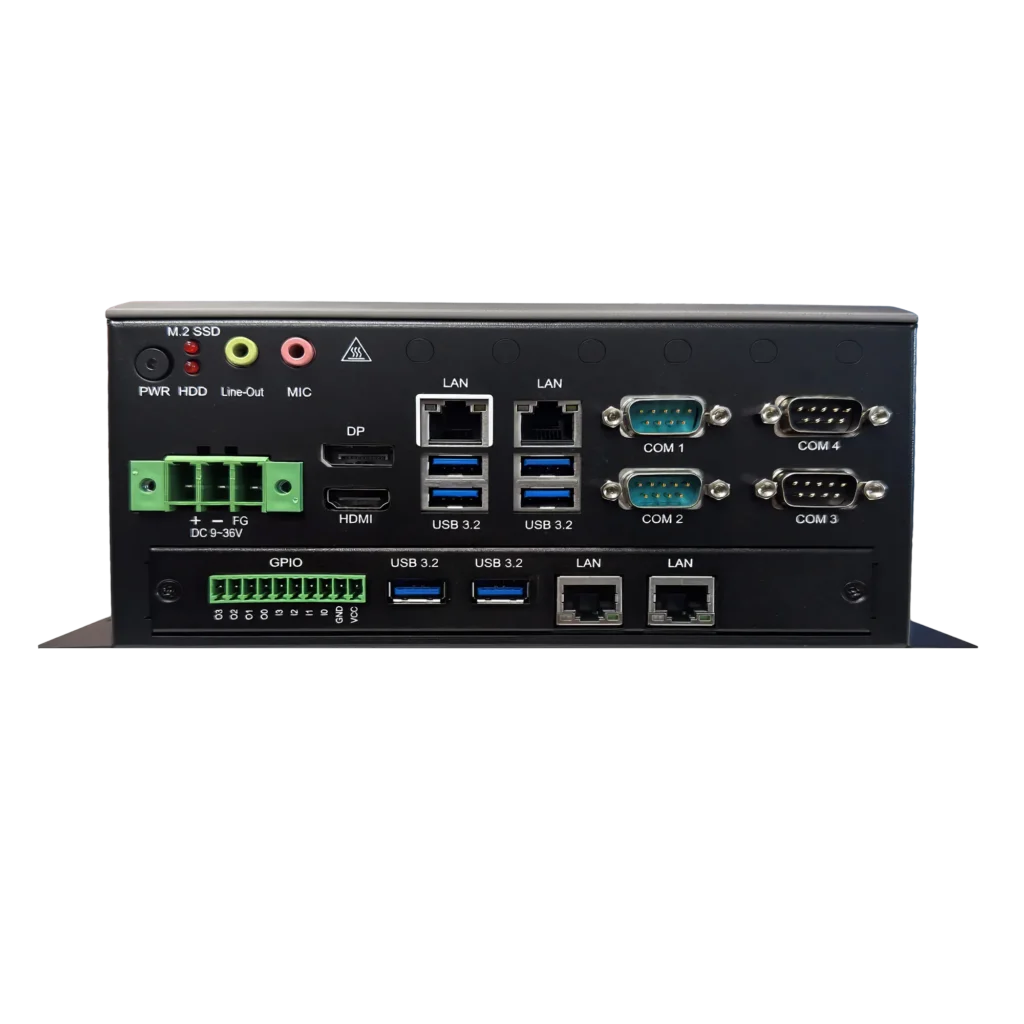

| Optionale Erweiterungen | Wi-Fi/Bluetooth, optional: 3rd & 4th LAN ports and GPIO ports |
| Zertifizierungen | CE |
