- Wall mounting PC
- 100 – 240V (AC) power supply integrated
- Absolutely noiseless
- Intel Celeron N2930 Quad-Core CPU
- Mounting without visible screws
- High-quality aluminum front in natural, black or pure white
- Resistive touchscreen
- Optional 2 x 2W speaker, microphone
- Individual coloring, interfaces and adjustments
- Need assistance?
- +49 (36847) 524 - 600
- info(at)hematec.de
HOME-CONTROL-2930 Serie
Product highlights
Request Informations
Unobtrusive elegance, noble aluminum and 0 dB – the wall-mounted devices of the HOME-CONTROL-2930 series can be described in such a short and concise way.
The stylish front made of polished, anodized aluminium forms the shapely frame for the high-contrast display and still builds only a few millimeters.
The devices do not require any active ventilation and are therefore absolutely silent. Installation and cabling are a breeze thanks to the wall-mounted housing with integrated 100 – 240V AC power supply.
The optionally integrated 2 x 2 Watt stereo speakers provide the acoustic support.
Prozessor
Intel Celeron N2930 Quad-Core (4 x 1.83 - 2.16 GHz) CPU
Arbeitsspeicher
4GB DDR3 RAM
Massenspeicher
1 x 2.5" HDD or SSD
Anschlüsse extern
1 x power input, 2 x GB-LAN, 1 x RS-232/422/485, 1 x RS-232, 2 x USB 2.0, 1 x Audio
Erweiterungsslots
no
Spannungsversorgung
100 - 240V AC power supply integrated, power consumption: 60W
Betriebstemperatur
0°C ~ 35°C, 10 - 90% no condensing at 40°C
Schutzart
All sides IP20
Gehäuse

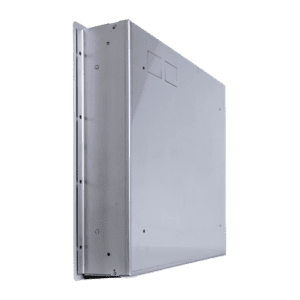

In-wall housing made of stainless steel, aluminum front natural or black anodized, screwless mounting, optional individual coloring (painting, airbrush, etc.) possible
Befestigung
In-wall istallation
Displayvarianten
15" 1024 x 768 px, 400 cd/m²19" 1280 x 1024 px, 350 cd/m²
Touchscreen
Resistive 5-wire touchscreen
Abmessungen (B x H x T)
15" 397 x 295 x 70 mm19" 482 x 385 x 85 mm
Kühlung
Completely fanless
Unterstützte Betriebssysteme
Windows 7, Windows 7 embedded, Windows 8.x, Windows 10, Windows 10 IoT, Linux/Unix
Unterstützte Bussysteme
USB, RS232/RS422/RS485, EtherCAT, PROFIBUS*, SERCOS*, DeviceNET*, CANopen*, etc* (* optional)
Zertifizierungen
CE, UL
