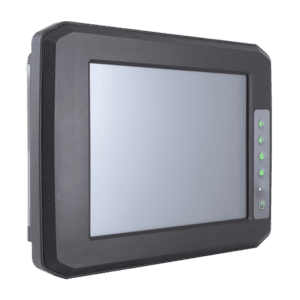

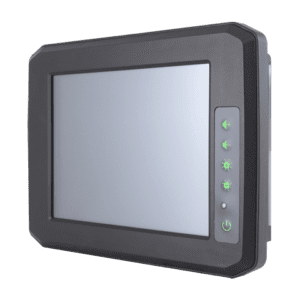

The Panel PCs of the FORTE-PRO-3840 series form a perfect compromise in terms of performance, energy consumption and price.
Operating on a forklift or forklift truck poses particular challenges to a panel PC. Vibrations and shocks, changing temperatures and environmental influences can add to the technology.
However, the FORTE-PRO-3840 forklift terminal is designed and built precisely for such extreme operating conditions. This also underlines the certification according to the military standard MIL810F.
Features such as the optional ignition-on-off circuit, which automatically switches the panel PC on and off when the ignition is switched off, the bright, daylight-readable display with brightness control, the extended temperature range, as well as the optional vehicle holding bracket or the RAM mount system are further features that round off the well thought-out concept of the FORTE-PRO-3840 forklift terminals.
The core of the panel PC is a powerful, low-power Intel Atom E3845 CPU with 4 x 1.91 GHz clock speed with 4GB of fixed DDR3 RAM. An mSATA SSD with up to 128GB capacity is used for the operating system and the data. The respective interfaces are guided outwards by waterproof M12 industrial connectors – or according to the respective customer requirements. A robust housing made of impact-resistant plastic reliably protects the components from all environmental influences.
Intel Atom E3845 Quad-Core (1.91 GHz) CPU
4GB DDR3 RAM
1 x mSATA SSD (32GB / 64GB / 128GB)

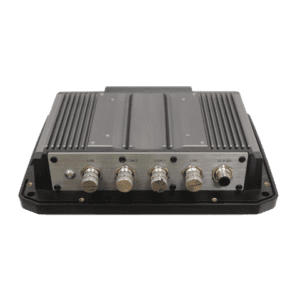

1 x power input, 1 x RS232, 1 x RS232/422/485, 2 x USB 2.0, 1 x GB-LAN, all connections are led to the outside via watertight and dustproof M12 screw connections
6 ~ 36 V DC, optional: 6 ~ 36 V DC + ignition on/ off, power consumption: 60W
-20°C ~ 60°C, 10 - 90% no condensing at 40°C
All sides IP65
Impact-resistant plastic, aluminum back
VESA 75/100, optional: vehicle mounting
8" TFT, 800 x 600 px, 1000 cd/m², brightness adjustable via buttons, optional sensor for automatic brightness adjustments
Resistive 5-wire touchscreen, reflections reduced
Abmessungen (B x H x T)
240 x 180 x 59 mm
Windows 7, Windows 7 embedded, Windows 8.x, Windows 10, Windows 10 IoT, Linux/Unix
